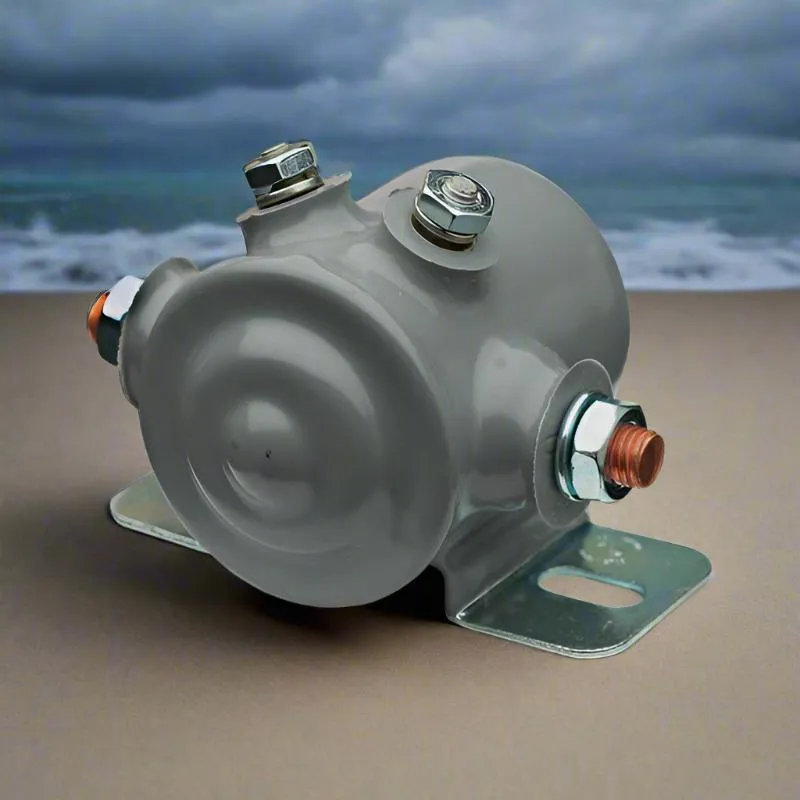

Marine Grade Coated Continuous Duty Solenoid SPST 12V 85A

PVC dipped housing, nuts & washers

4 stud, Insulated stud earth

SPST Normally open (one circuit) OFF/ON

Copper Stud terminals 5/16″-24

Insulated Coil terminals 10-32

Plated steel housing, nuts & washers Inc.

Mounting holes 8mm x 15mm, 56mm Centre to Centre

Mount with brand cap facing DOWN

Int. ratings: 10 sec ON, 30 min OFF

• Amperage: 85A Cont, 750A make, 100A break, 17.5 ohm

• Dimensions: H60mm x D64mm x W80mm

• Configuration: SPST

• Modes: Continuous Duty

• Applications: Marine
